From the OE Factory to the local Tire Shop, Bartec products are the industry's best! It is Bartec's OE roots that helped us create our latest innovation, the Rite-Sensor®!

The Rite-Sensor® is Bartec's single SKU, multi-frequency programmable sensor. It offers 98% vehicle coverage while remaining easy to use. Simply program the sensor with one of the Bartec TPMS tools pictured below. The tool guides you through the process, step-by-step.

You can program the Rite-Sensor® before or after installation.

Rite-Sensor® TPM Sensor Features

  • Only Rite-Sensor® features Rite-Sync® Technology!
  • Configures in less than 3 seconds
  • Programs & Updates in less than 10 seconds
  • Dual Frequency [315 MHz and 433 MHz]
  • 97%, Single SKU Application Coverage
  • Comes with BOTH Rubber and Clamp In Valve Stem
  • Programs with Bartec TPMS Tools
  • Programs in free space or assembled in the wheel
  • Programming process is directed by the tool
  • Complete offering including replacement valves and service kits

Rite-Sensor® TPM Sensor

Tech450Pro Brochure

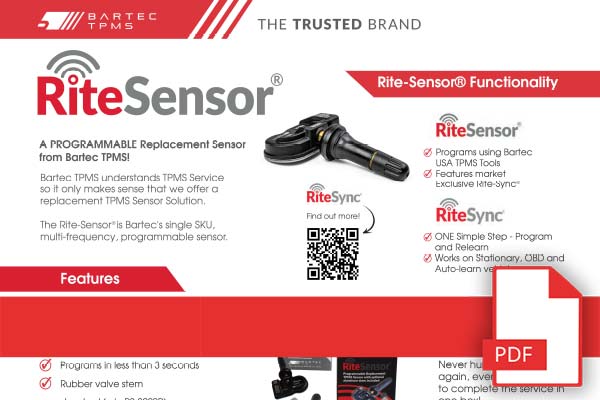

Rite-Sensor® TPM Sensor Brochure

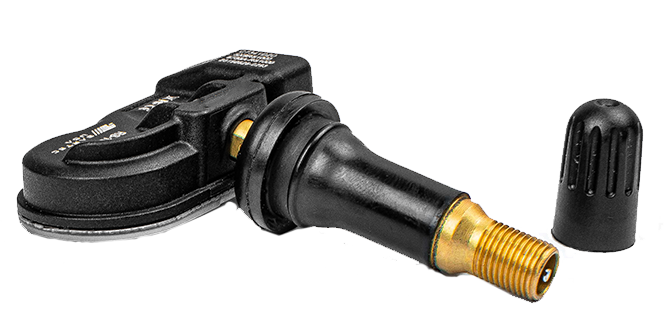

The RITE-SENSOR® comes assembled with a rubber valve stem. In some cases the aluminum valve stem is required or needed.

First remove the rubber valve stem by unscrewing the fastener. Insert the aluminum stem into the sensor. Insert the anti-rotation pin into the hole at the base of the stem, just above the sensor body. Insert NEW fastener into stem and torque to 35.5 in-lbs (4Nm).


The RITE-SENSOR® needs to be programmed BEFORE use. To program the RITE-SENSOR® according to specific year, make and model being serviced, follow the instructions on your Bartec Tech600Pro, Tech450Pro, Tech400Pro, Tech300Pro Tech500, or Tech400SD TPMS service tool. It is important to know the precise application information to accurately program your RITE-SENSOR®.
